Hose & Heater Diagnostics
Heated Hose Diagnostics That Find the Real Problem
A heated hose that won’t hold temperature along its full run can cause ratio and spray-quality problems that look exactly like a proportioner failure. We test the whole hose system to find out which one it actually is.
What’s Included
Full-Run Diagnostics, Not a Guess at the Machine End
Heat loss can hide anywhere along 100+ feet of hose. We test the whole run, the couplings, and the control board — not just the section closest to the proportioner.

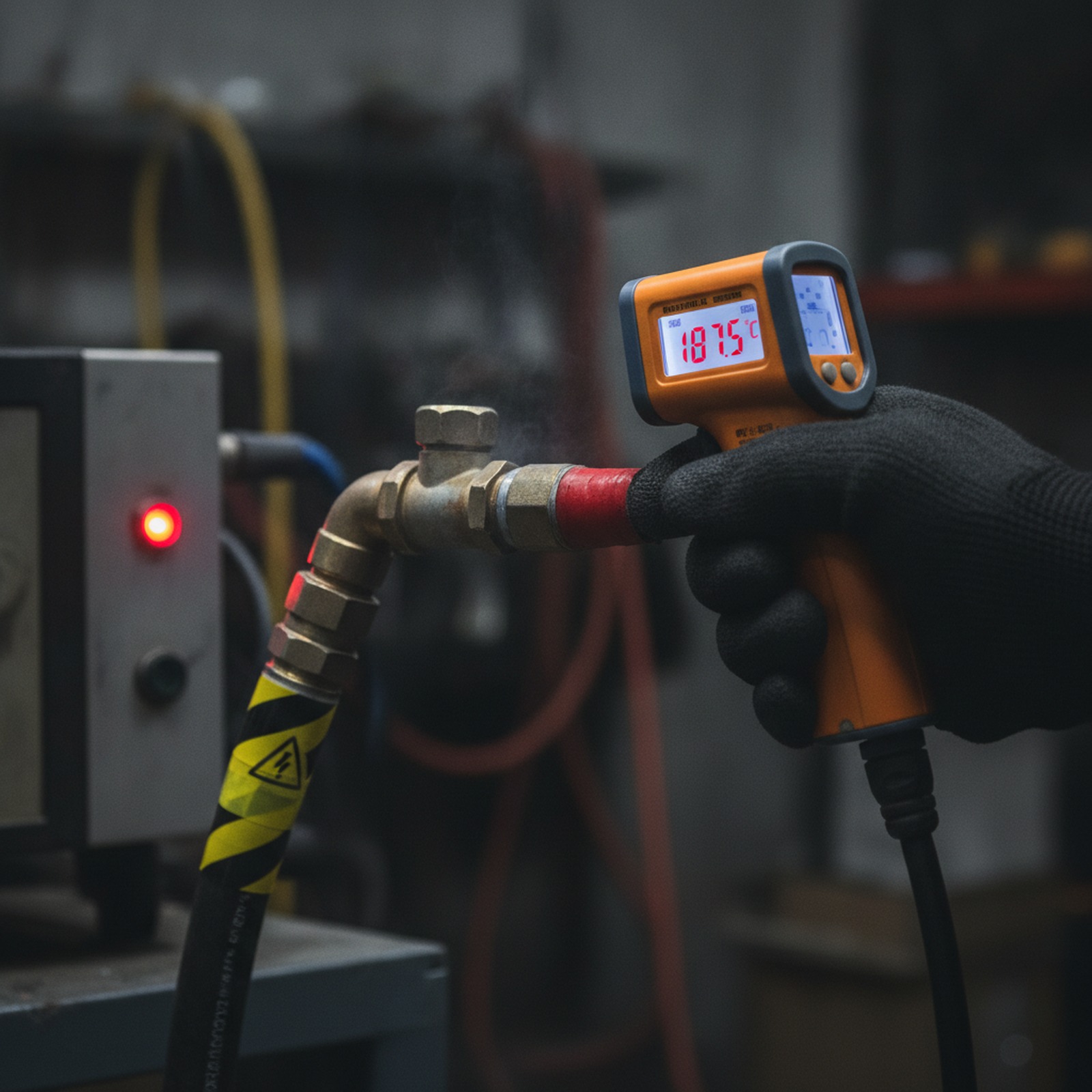

Full-Run Temperature Diagnostics
A heated hose has to hold consistent temperature from the proportioner to the gun — not just at the machine end. We test temperature at multiple points along the run to find where heat loss is actually happening, not just at the point where it's most obvious.
Heating Element & Continuity Testing
Heated hoses use an internal heating element and thermocouple running the length of the hose. We test continuity and resistance section by section to isolate a break, short, or failing element without cutting the whole hose apart.
Coupling & Fitting Repair
Couplings and whip-hose connections are common failure points — a loose or damaged fitting can cause both a heat-loss gap and a pressure leak at the same time. We repair or replace fittings and re-terminate hose ends to spec.
Heat-Loss Troubleshooting
Cold spots, insulation damage, and a whip hose that isn't heated the same way as the main line all create localized heat loss. We track down exactly where the hose is losing temperature instead of replacing the whole run on a guess.
Temperature Control Board Repair
The control board that regulates hose heat can fail independently of the hose itself — a board issue can look identical to a hose problem from the outside. We check the control system alongside the physical hose.
Why Hose Temperature Drives Ratio Accuracy
Chemical viscosity changes with temperature — if the hose lets material cool even slightly before it reaches the gun, the ratio and mix quality at the substrate can be off even though the proportioner itself is delivering a correct A/B ratio.
Who Needs This
Signs the Hose Is the Real Problem
If you've already checked the proportioner and it tests fine, this is usually where the answer is hiding.
- You're seeing ratio problems at the gun even though the proportioner tests fine on its own.
- One section of hose runs noticeably cooler than the rest, or the whip hose doesn't match the main line's temperature.
- A heated hose that used to hold temperature is now taking longer to warm up or won't reach set temperature at all.
- You've already ruled out the proportioner and the gun and need someone to test the hose system specifically.
How We Test a Hose Run
50-100’
Interval we check temperature and continuity
Continuity tested end to end, not just at the machine
GUN
We verify heat at the gun, not just at the machine
[24-48 HR]
Typical turnaround on-site or in-hand
Checking heat only where the hose connects to the proportioner misses the most common failure pattern — heat loss further down the line or at the whip hose. We verify temperature all the way to the gun before calling a hose good.
A cold hose section wrecks ratio before it reaches the gun.
CALL 844-967-5247Common Questions
Hose & Heater Diagnostics FAQ
Why does hose temperature matter for spray quality?
Spray foam chemicals are viscosity-sensitive to temperature. A heated hose keeps material at the correct temperature and viscosity along the entire run from the proportioner to the gun — if the hose loses heat anywhere along that path, the material can arrive at the gun off-viscosity and off-ratio even when the proportioner itself is working correctly.
How do you find a heat-loss problem without cutting the hose apart?
We test temperature and electrical continuity at intervals along the hose run — commonly checking every 50 to 100 feet — to isolate where heat is actually being lost, rather than guessing based on where the hose feels cool to the touch. That narrows the problem to a specific section or fitting before any hose gets cut.
Can a hose problem cause the same symptoms as a bad proportioner?
Yes, and it's one of the most common misdiagnoses in the field. Off-ratio foam, poor atomization, and inconsistent cure can all be caused by a hose that isn't maintaining temperature, even when the proportioner is delivering a correct ratio at the machine. If your proportioner checks out clean, the hose and heater system is the next place to look.
Should I have a technician come to me for hose diagnostics, or ship the hose in?
Hose diagnostics are usually faster and more accurate done in the field, since heat loss often only shows up once the hose is laid out and run under real conditions on your rig. We prioritize on-site diagnostics for hose and heater issues, with ship-in service available for isolated coupling repairs.
How long does hose and heater repair take?
A coupling repair or fitting replacement can often be handled in a single visit. A full diagnostic run to isolate a heat-loss section takes longer but is still typically resolved within [24-48 Hour Turnaround] once we're on-site or have the hose in hand.
Get Your Hose Holding Temperature Again
Call dispatch now or send us the symptoms and we’ll get a technician on it.
